MORLEY – MI/DCMOE Addressable Control Output Module

Description

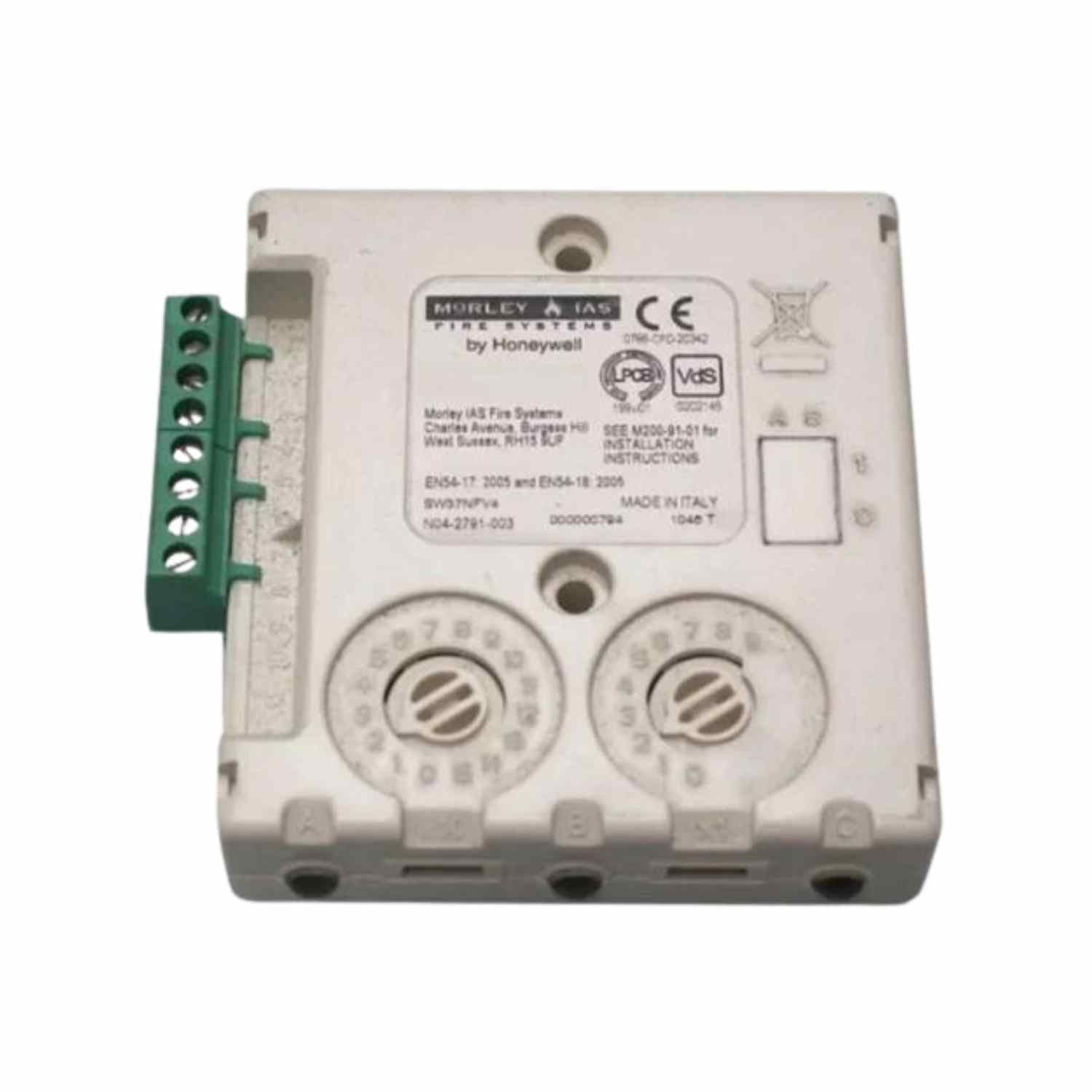

Morley MI/DCMOE Addressable Control Output Module

The Morley MI/DCMOE Output Module control output module used with the ZX series of intelligent conrol panels to provide either a single alarm circuit or Form C relay. The MI-DCMO can operate dry contacts for door holders, air handling unit shut down, or other similar functions. Optionally, the module can supervise wiring to the output load to monitor the external load voltage or power supply. If the monitored voltage falls below the threshold, the module will indicate a fault condition.

Each MI-DCMO uses one of the ninety-nine possible module addresses available on a loop. It responds to regular polling from the conrtol panel indicated by a pulsing LED every successful communication. On command from the control panel the MI-DCMO will disconnect the supervision and connect the external power supply across the load.

Its unique mechanical design allows each module to mount either in a wall box (M200-SMB) or on a DIN rail (using M200-DIN). Irrespective of the mounting method chosen, the address switch is both visible and accessible for selection.

To help engineers the maintenance and fault finding process, both the LEDs and the address switches can be viewed without having to remove the cover of the mounting box. The LEDs, being multi colour, provide diagnostic information regarding the status of the output. For ease of installation, testing and maintenance, the field wiring terminals are of a plug in design.

Key Features:

• Tri-colour LED status indication
• Built-in Short Circuit Isolators
•  Visible Address selector switches
• LED status visible in 2 planes
• Plug in connectors
• Approved to GEA GEI 1-082 and CEA GEI 1-084.
