RAVEL – RE-428-FR | Optical Beam Detector | 50 Meter Range | LPCB Approved

Description

About Ravel Optical Beam Detector 50 Meter Range

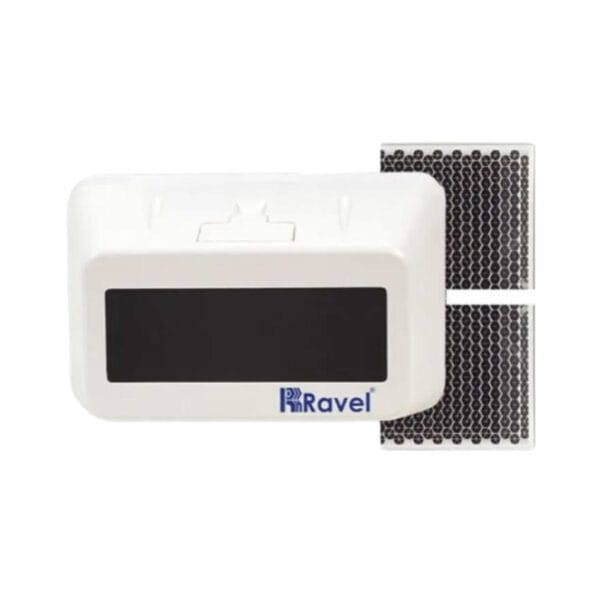

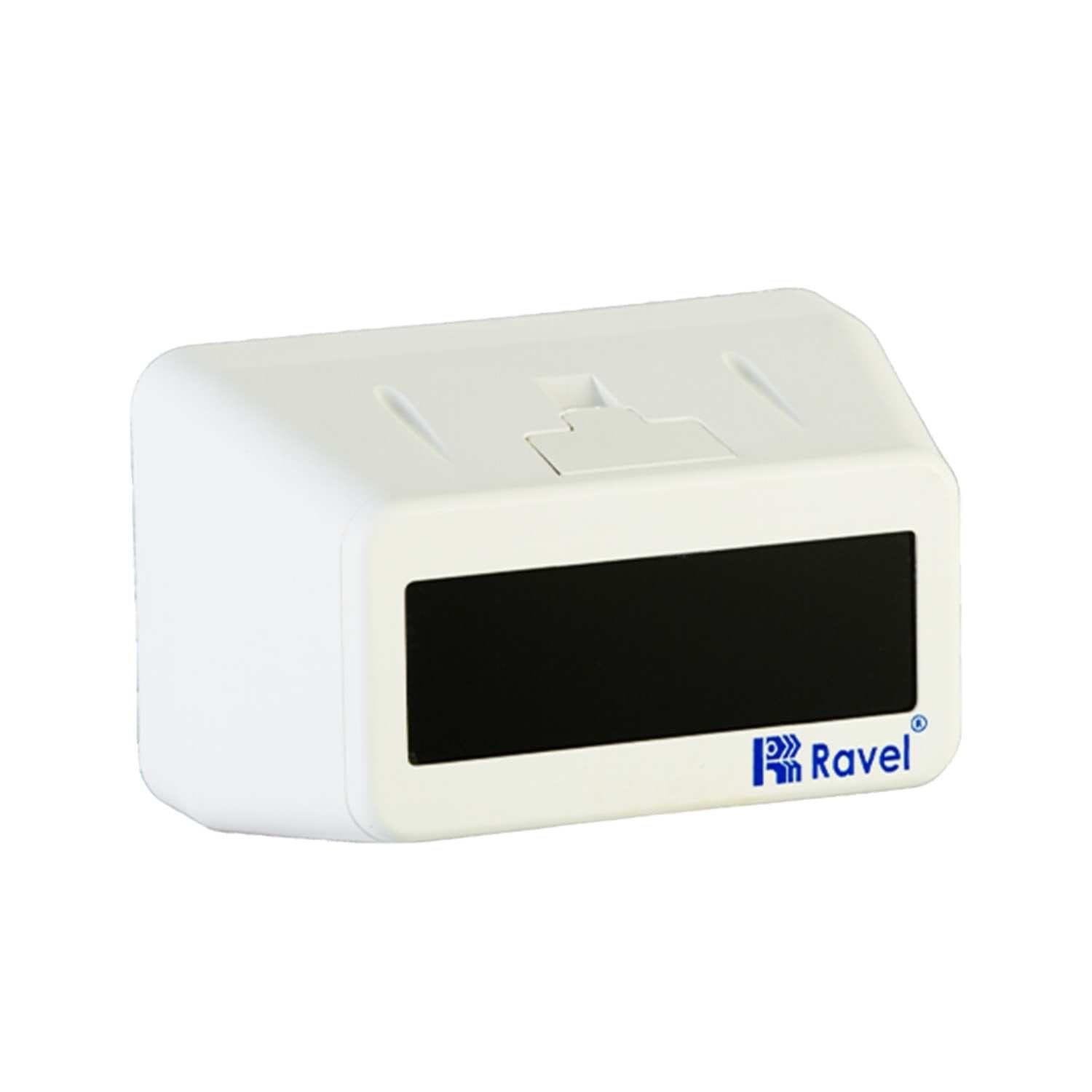

Ravel RE-428-FR Series beam smoke detector is designed for smoke detection at the start of a fire. It is especially suitable for protection of indoor spaces, in which the appearance of smoke is likely during ignition of a fire, and where, due to a large space area, installation of a greater number of point smoke detectors would be necessary. The RE-428-FR Series beam smoke detector and the prism reflector or reflector panel are installed on opposite walls of a room.

Complete interruption of the radiation beam is signalized as a fault mode because even the largest smoke concentration in the air does not cause complete interruption of the detector optical beam path. If the air is clear, the detector is in a quiescent mode. The RE-428-FR series beam smoke detector is equipped with a built-in automatic compensation systems for monitoring of dirt build-up on its optical system and compensation for environ impact conditions ensuring that the detector maintains constant sensitivity and fire detection ability for a long time. At a certain level of dirt build-up, the detector signals a fault mode denoting the necessity to undertake servicing and cleaning works.

Ideal for commercial, industrial, and institutional applications, this detector enhances security by offering a proactive approach to perimeter protection. It integrates smoothly with existing security systems, providing a cost-effective solution that prioritizes early detection and response to potential threats.

• User Friendly Installation
• In built laser light for easy alignment
• Supports 5 to 50 meter range
• Option for Remote Indication
• Provision to connect with Fire Man Telephone System
• Adjusting Screws at detector for precise alignment
• Infrared transmitter & receiver located in a single housing
• In built drift compensation for monitoring dirt build up on the optical system
• Sensitivity Threshold :- 18% ,30%, 50%
